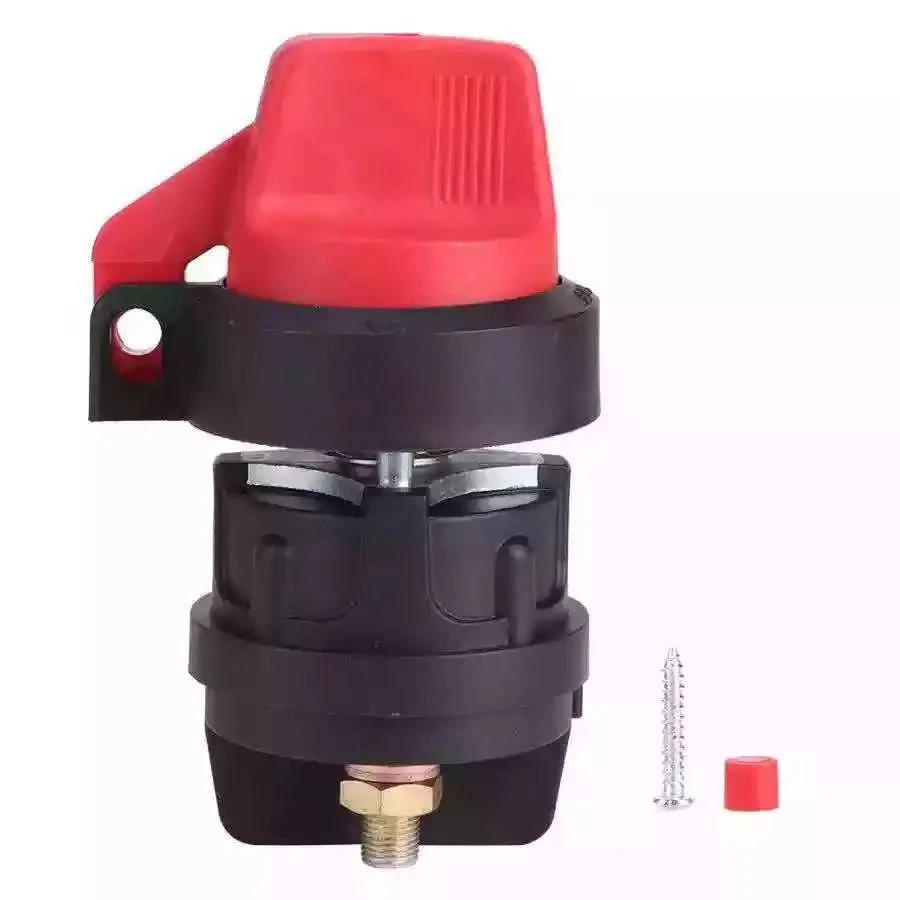

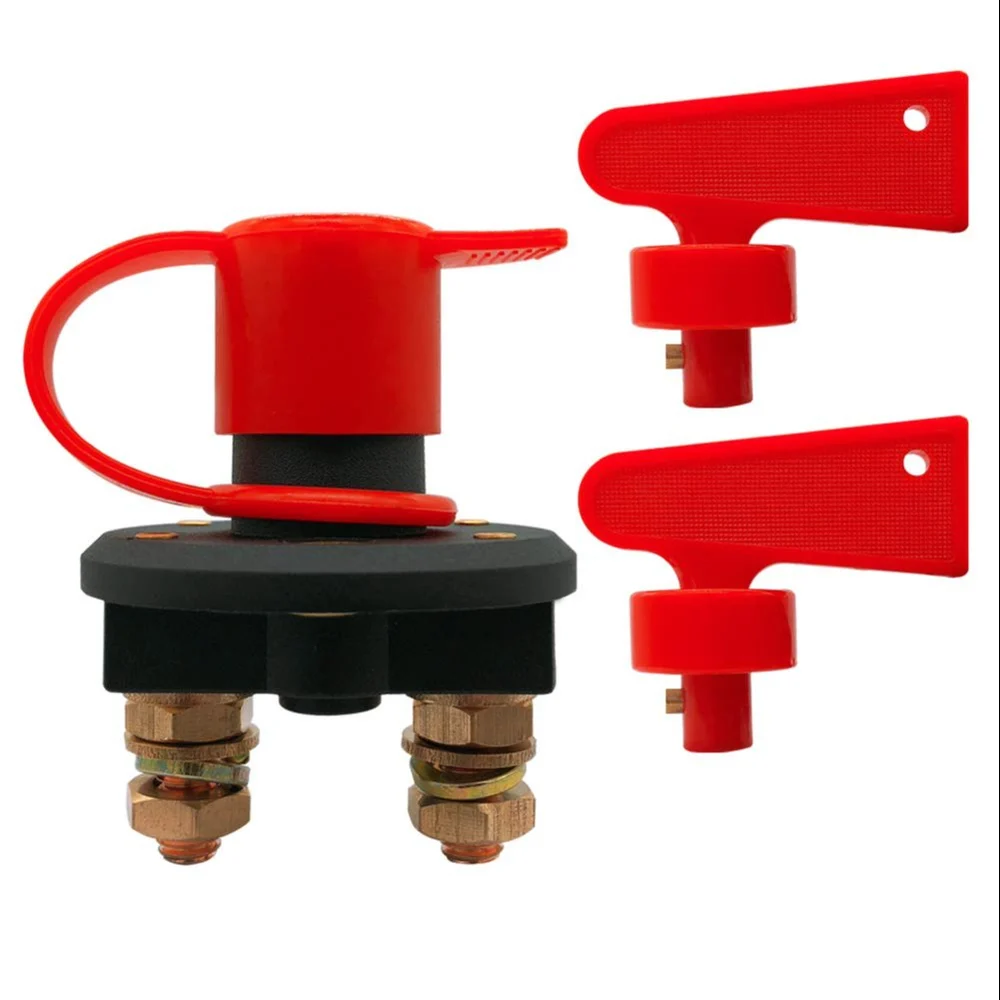

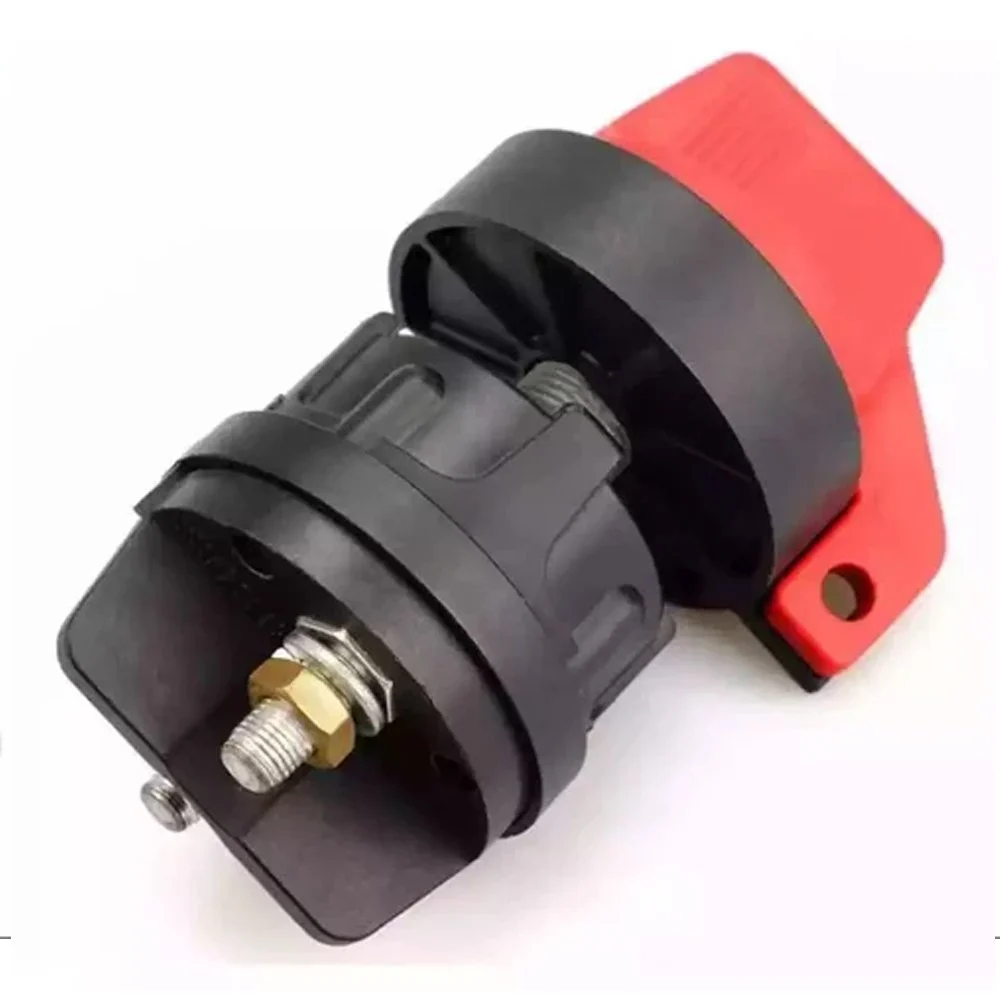

Battery Cut Off Switch

Price 2000.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Battery Cut Off Switch Specification

Protection Level
IP68

Max. Current
100 Ampere (amp)

Product Type
Manual,Remote & Automatic

Material
Plastic and Iron

Insulation Resistance
>100 M at 500V DC

Contact Resistance
<1 Ohm Milliohm (m)

Max. Voltage
12-36 Volt (V)

Warranty
Yes

Size
Different available

Color
Multiple

Operating Temperature
40 F to +176 F Celsius (oC)

Weight
0.7 kg Kilograms (kg)

Features
High quality

Frequency
50 Hz Hertz (HZ)

Current Rating
300 Amps

Battery Cut Off Switch Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Delivery Time
7 Days

Main Domestic Market
All India

About Battery Cut Off Switch

Battery disconnect switches are designed to cut

off electrical power, help protect against electrical fires and theft when equipment is not in use. They also provide a reliable way to shut down electrical power during maintenance and protect batteries from excessive drain. Installing a battery cut off switch is usually done either for safety considerations or as an anti theft precaution.

Technical Specification:

1. Max Continuous Current : 300 Amps

2. Max Surge Current : 2,500 Amps (5 seconds)

3. Environmental Protection Rating : IP68

4. Water Resistant : Yes

5. Operating Temperature Range : -40 C to +80 C / 40 F to +176 F

6. Contact Terminals : Silver Plated Copper

7. Contact Hardware : Nickel Plated Brass

8. Additional Notes : Meets OSHA Lock Out/Tag Out Regulation 1910.147

9. Available Stud : Length 0.95" (approx. 61/64 in.)

10. Extension Handle/Lever : No

11. LED On/Off Indicator : No

12. Lock Out Capability : Yes Padlock (not included)

13. Max Tightening Torque : 11-13 ft. lbs.

14. Mounting Bracket Included : Yes

15. Stud Diameter : M10

16. Voltage : 12V/24V and 36VDC
